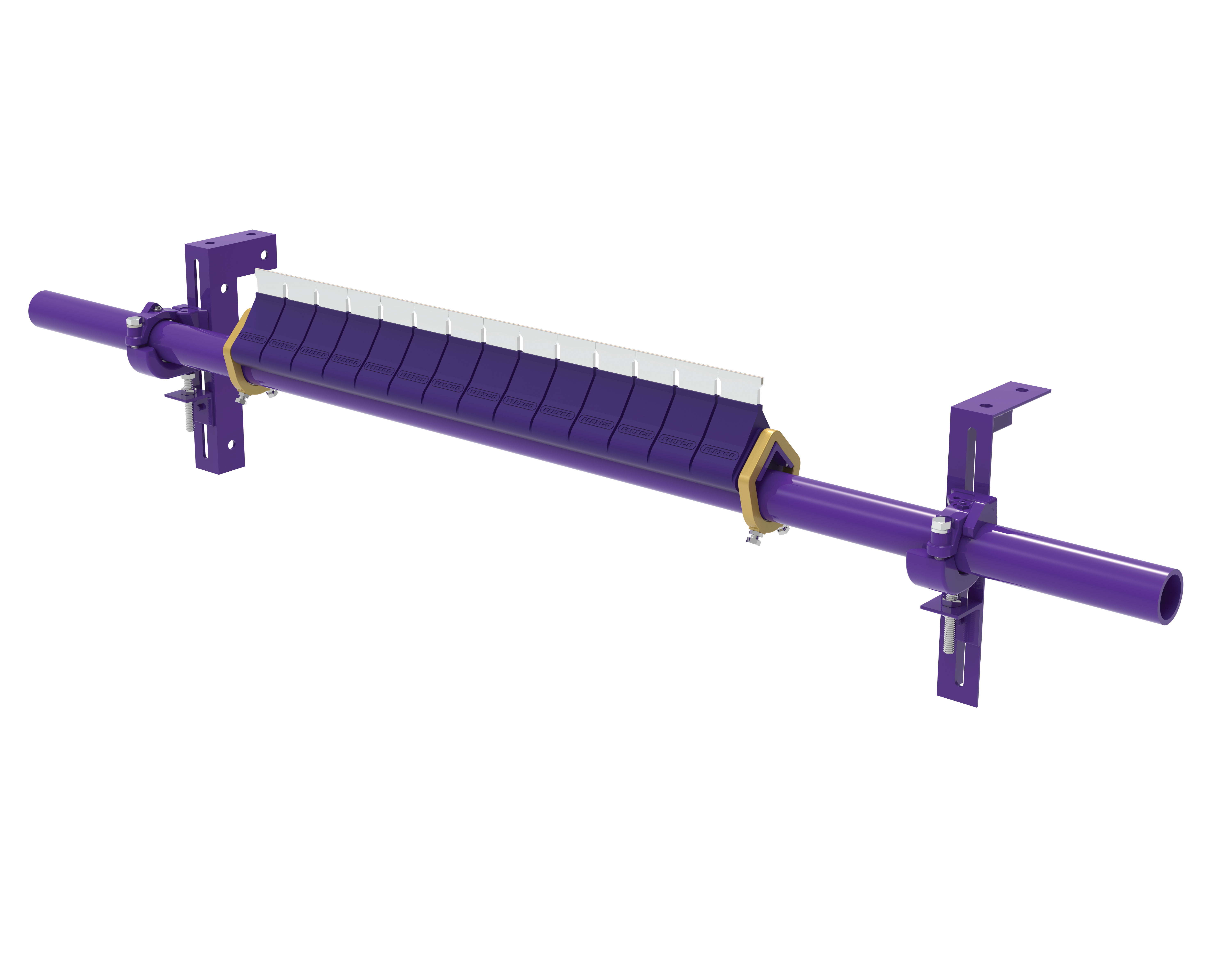

Y-Type^™ Heavy-Duty with Carbide Blades and Bolt Tensioner

TheY-Type™ Heavy-Duty with Carbide Blades and Bolt Tensioner is made from heavy-duty, powder-coated steel with a 2-7/8” (73 mm) diameter pole and works on reversing belts, vulcanized belts, and belts with mechanical fasteners.

Specifications

• Maximum Belt Speed: 750 fpm (3.8 m/sec)
• Temperature Rating: -30°F to 180°F (-35°C to 82°C)
• Usable Blade Wear Length: 3/8" (10 mm)
• Blade Material: Tungsten Carbide (works with mechanical fasteners)
• 3" (75 mm) wide blade segments
• Option to remove and replace blades individually or as a complete cartridge
• Pole Diameter: 2-7/8" (73 mm)
• Available for Belt Widths: 36" to 72" (900 to 1800 mm)

Installation

• Pole Length: Pole Length: Belt width plus 54" (1350 mm). For longer requirements, see Pole Extenders under Belt Cleaner Accessories.
• Horizontal clearance required: 5-1/4" (133 mm)
• Vertical clearance required: 9-3/4" (248 mm)
• To make cleaner installation easier and quicker, see Optional Mounting Kits under Belt Cleaner Accessories.
