Mechanical Belt Fastening Systems

No matter what you’re moving, minimizing downtime and maximizing output are always top priorities—and they can be significantly affected by the way you splice your conveyor belts. Most belt conveyor operations rely on one or both common methods of splicing: mechanical belt fastening or vulcanization.

Mechanical Belt Fasteners vs. Vulcanization

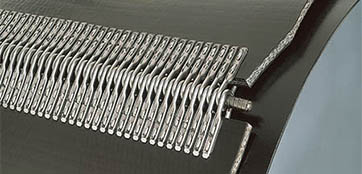

Conveyor Belt Splice Hinged FastenerMechanical Belt Fastening is the process of joining conveyor belt ends by metal hinges or plates. Vulcanization is the process of joining belt ends through heat or chemicals.

The vulcanization of heavy-duty conveyor belts – whether hot or cold—is a time-consuming process that requires special skills, expensive equipment, extreme accuracy in the cutting and stripping of belt ends, and a thorough knowledge of solvents, bonding materials, and compatible cover and fill materials.

Mechanical Belt Fastening involves the use of mechanical belt fasteners (also called conveyor belt lacing). Mechanical belt fasteners combine strength and durability with affordability and easy installation.

Heavy-Duty Belt Fastener Types

Conveyor Belt Splice Solid Plate FastenerIn heavy-duty applications like coal, cement, mining, and aggregate, there are two main belt fastener types: Hinged Plate and Solid Plate. Hinged plate fasteners, often used with small pulleys, are installed into each end of the belt and then joined together and held in place with a pin. Solid plate fasteners consist of one plate that is installed into both ends of the belt and fastened together. Solid plate fasteners are used with larger pulleys and for applications that require a sift-free splice. These fasteners are installed into the belt using bolts, rivets, or staples (depending on belt type and application) and are available in a variety of metals.

Heavy Duty
Mechanical Belt Fastener
Selection Calculator

Light-Duty Belt Fastener Types

Conveyor Belt Splice Hook FastenerIn light-duty applications like agriculture, parcel handling, food, and laundry, fasteners are available in hook and lacing styles, are installed into both ends of the belt, and are joined together with a hinge pin. Installation methods vary from machine application to using hand tools, and the fasteners are available in a variety of metals, plastics, and in some cases, food-grade materials.

Choosing the proper mechanical belt fastening system is one of the most important steps in splicing a belt.

Use the filters at the left to refine your results and find the mechanical belt fastening system that is best suited to your application.

Apply FiltersClose

IM* Belt Thickness

clear

ME* Belt Thickness

clear

IM* PIW Max

clear

ME* kN/m

clear

IM* Minimum Pulley Diameter

clear

ME* Minimum Pulley Diameter

clear

Specialty Application

clear
Refine Results
Please wait while we gather your results.

MineLine

MINELINE®
When standard products just won't do.
Flexco Mineline® products are designed and engineered to work in some of the toughest applications in the world that test the strength and durability of your conveyor system. Products carrying the Mineline® name are proven to work — even where other products have failed.
