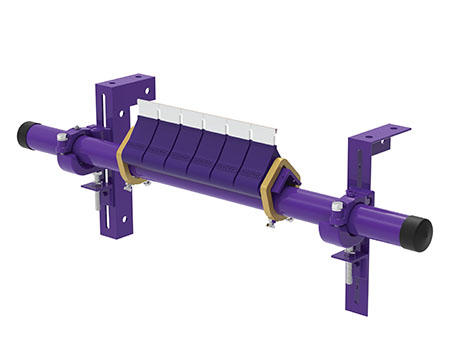

Y-Type^™ Standard-Duty with Carbide Blades and Bolt Tensioner

The Y-Type™ Standard-Duty with Carbide Blades and Bolt Tensioner is made from heavy-duty, powder-coated steel with a 2-3/8" (60 mm) diameter pole and works on reversing belts, vulcanized belts, and belts with mechanical fasteners.

Specifications

• Maximum Belt Speed: 600 fpm (3 m/sec)
• Temperature Rating: -30°F to 180°F (-35°C to 82°C)
• Usable Blade Wear Length: 1/4" (6 mm)
• Blade Material: Tungsten Carbide (works with mechanical fasteners)
• 3" (75 mm) wide blade segments
• Option to remove and replace blades individually or as a complete cartridge
• Pole Diameter: 2-3/8" (60 mm)
• Available for Belt Widths: 18" to 48" (450 to 1200 mm)

Installation

• Pole Length: Pole Length: Belt width plus 30" (750 mm). For longer requirements, see Pole Extenders under Belt Cleaner Accessories.
• Horizontal clearance required: 4-1/4" (110 mm)
• Vertical clearance required: 7-3/4" (184 mm)
• To make cleaner installation easier and quicker, see Optional Mounting Kits under Belt Cleaner Accessories.
